FHIR Chat · radio buttons

Stream: questionnaire

Topic: radio buttons

Brian Postlethwaite (Oct 07 2019 at 03:07):

Is there an extension to cover horizontal layout for radio buttons?
(rather than the default vertical - at least that's what I see most doing)

Lloyd McKenzie (Oct 07 2019 at 04:23):

http://hl7.org/fhir/R4/extension-questionnaire-choiceorientation.html (works for radio-buttons and check-boxes)

Shoaib Mushtaq (Jun 07 2021 at 13:16):

Hey @Lloyd McKenzie

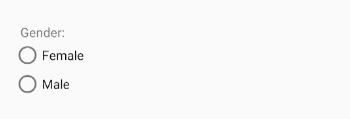

I wanna make Patient.gender radio buttons as horizontal layout but they still looks vertical to me in the final UI on App.
Below is my json around this. Let me know what am i doing wrong here? Would appreciate any help

           {
      "linkId": "patient-0-gender",
      "extension": [
        {
          "url": "http://hl7.org/fhir/uv/sdc/StructureDefinition/sdc-questionnaire-itemContext",
          "valueExpression": {
            "language": "application/x-fhir-query",
            "expression": "Enumerations$AdministrativeGender",
            "name": "administrativeGender"
          }
        },
        {
          "url": "http://hl7.org/fhir/StructureDefinition/questionnaire-itemControl",
          "valueCodeableConcept": {
            "coding": [
              {
                "system": "http://hl7.org/fhir/questionnaire-item-control",
                "code": "radio-button",
                "display": "Radio Button"
              }
            ]
          }
        },
        {
          "url": "http://hl7.org/fhir/StructureDefinition/questionnaire-choiceOrientation",
          "valueCode": "horizontal"
        }
      ],
      "definition": "http://hl7.org/fhir/StructureDefinition/Patient#Patient.gender",
      "type": "choice",
      "text": "Gender:",
      "answerOption": [
        {
          "valueCoding": {
            "code": "F",
            "display": "Female"
          }
        },
        {
          "valueCoding": {
            "code": "M",
            "display": "Male"
          }
        }
      ]
    }


Lloyd McKenzie (Jun 07 2021 at 14:26):

Does the rendering tool you're using support the choiceOrientation extension? What rendering tool are you using?

Shoaib Mushtaq (Jun 07 2021 at 15:49):

I am using https://github.com/google/android-fhir/tree/master/datacapture for rendering and looks like this doesn't support it yet. Thanks for your reply :+1:
